IF_Capsule – SetPointsRadius (Method)
Description
The method can be called multiple times to reconfigure the object.

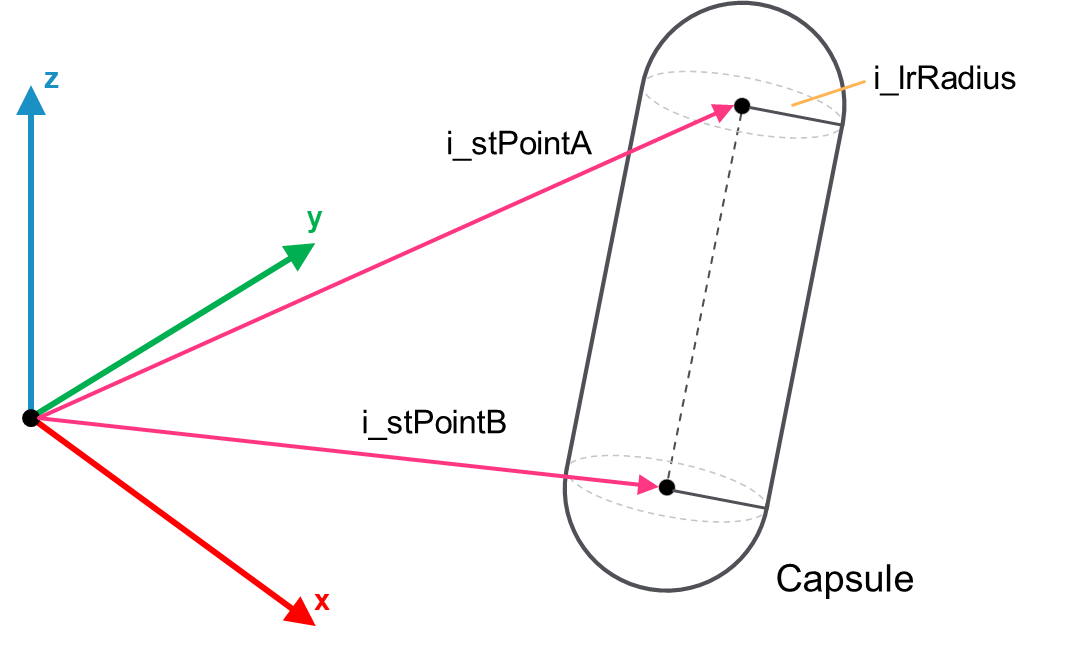

The following figure represents i_stPointA, i_stPointB and i_lrRadiusparameters of a Capsule object:
Interface
Access: PUBLIC
|
Input |
Data type |
Description |
|---|---|---|
|
i_stPointA |
SE_Math.ST_Vector3D |
Point A Capsule object. |
|
i_stPointB |
SE_Math.ST_Vector3D |
Point B Capsule object. |
|
i_lrRadius |
LREAL |
Radius of the Capsule object. |
|
Output |
Data type |
Description |
|---|---|---|
|
q_xError |
BOOL |
The output is set to TRUE if an error has been detected during the execution. |
|
q_etResult |
POU-specific output on the diagnostic; q_xError = FALSE -> Status message; q_xError = TRUE -> Diagnostic message. |
|
|
q_sResultMsg |
STRING(80) |
Event-triggered message that gives additional information on the diagnostic state. |
