IF_Configuration - Gantry2Ax (Method)

Overview

Type:	Method
Available as of:	V2.6.0.0

Robots of all types inherently present various hazards to machine operators, maintenance personnel, and commissioners. Some of these hazards may be the result of improper/invalid programming control or system parameterization/configuration. To help avoid as much as possible these hazards/situations, the library SchneiderElectricRobotics has been developed dedicated to Schneider Electric robots.

WARNING
	UNINTENDED ROBOT OPERATION Ensure that the library SchneiderElectricRobotics is used for operating a Schneider Electric robot. Failure to follow these instructions can result in death, serious injury, or equipment damage.

The library SchneiderElectricRobotics facilitates:

The parameterization of the robot.
The monitoring of the robot axes parameters.
- GearIn and GearOut
- FeedConstant
- Maximum current
- Direction
- Maximum speed
The monitoring of the work envelope of the robot.

This chapter provides information on:

Task
Description
Interface

Task

Configuring a gantry robot with two axes.

Description

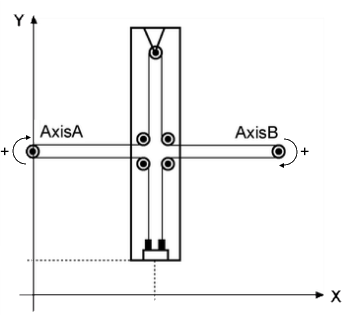

With the method Gantry2Ax(...), a transformation for a gantry robot with two axes can be configured.

Interface

Input	Data type	Description
i_ifDriveA	SystemConfigurationItf.IF_Drive	Drive of axis A.
i_ifDriveB	SystemConfigurationItf.IF_Drive	Drive of axis B.
i_etPlane	ET_WorkingPlane	Specification in which working plane the robot is operating.

Output	Data type	Description
q_etDiag	GD.ET_Diag	General library-independent statement on the diagnostic. A value not equal to ET_Diag.Ok corresponds to a diagnostic message.
q_etDiagExt	ET_DiagExt	POU-specific output on the diagnostic. q_etDiag = ET_Diag.Ok -> Status message q_etDiag <> ET_Diag.Ok -> Diagnostic message
q_sMsg	STRING[80]	Event-triggered message that gives additional information on the diagnostic state.

Output

Data type

Description

q_etDiag

GD.ET_Diag

General library-independent statement on the diagnostic.

A value not equal to ET_Diag.Ok corresponds to a diagnostic message.

q_etDiagExt

ET_DiagExt

POU-specific output on the diagnostic.

q_etDiag = ET_Diag.Ok -> Status message

q_etDiag <> ET_Diag.Ok -> Diagnostic message

q_sMsg

STRING[80]

Event-triggered message that gives additional information on the diagnostic state.

Diagnostic Messages

q_etDiag	q_etDiagExt	Enumeration value	Description
OK	Ok	0	Ok
ExecutionAborted	ConfigurationAlreadyCompleted	105	The configuration is already completed.
ExecutionAborted	TransformationAlreadyConfigured	106	The transformation is already configured.
InputParameterInvalid	DriveAAlreadyInUse	36	The drive A is already in use.
InputParameterInvalid	DriveAInvalid	48	The drive A is invalid.
InputParameterInvalid	DriveBAlreadyInUse	37	The drive B is already in use.
InputParameterInvalid	DriveBInvalid	49	The drive B is invalid.
InputParameterInvalid	PlaneInvalid	107	The working plane is invalid.

Ok

Enumeration name:	Ok
Enumeration value:	0
Description:	Ok

The configuration of the robot transformation was successful.

ConfigurationAlreadyCompleted

Enumeration name:	ConfigurationAlreadyCompleted
Enumeration value:	105
Description:	The configuration is already completed.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The configuration of the robot has already been completed. The method ConfigDone(...) has already been called successfully.	Ensure that no transformation configuration method, for example Delta3Ax(...) or AddAuxAx(...), is called after the configuration has been completed.

TransformationAlreadyConfigured

Enumeration name:	TransformationAlreadyConfigured
Enumeration value:	106
Description:	The transformation is already configured.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The configuration of the robot transformation has already been completed successfully.	Ensure that a configuration for a transformation is only called once.

DriveAAlreadyInUse

Enumeration name:	DriveAAlreadyInUse
Enumeration value:	36
Description:	The drive A is already in use.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The drive transferred at the input i_ifDriveA is already configured in the robot and cannot be used again.	Ensure that no drive is assigned to the robot more than once, and correct if necessary.

DriveAInvalid

Enumeration name:	DriveAInvalid
Enumeration value:	48
Description:	The drive A is invalid.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The drive transferred at the input i_ifDriveA is invalid.	At the input i_ifDriveA, a valid drive must be transferred.

DriveBAlreadyInUse

Enumeration name:	DriveBAlreadyInUse
Enumeration value:	37
Description:	The drive B is already in use.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The drive transferred at the input i_ifDriveB is already configured in the robot and cannot be used again.	Ensure that no drive is assigned to the robot more than once, and correct if necessary.

DriveBInvalid

Enumeration name:	DriveBInvalid
Enumeration value:	49
Description:	The drive B is invalid.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The drive transferred at the input i_ifDriveB is invalid.	At the input i_ifDriveB, a valid drive must be transferred.

PlaneInvalid

Enumeration name:	PlaneInvalid
Enumeration value:	107
Description:	The working plane is invalid.

Issue	Cause	Solution
The configuration of the robot transformation was not successful.	The value transferred at the input i_etPlane is invalid.	At the input i_etPlane, a value contained in ET_WorkingPlane must be transferred.
